AP 系列
AP-40
Description

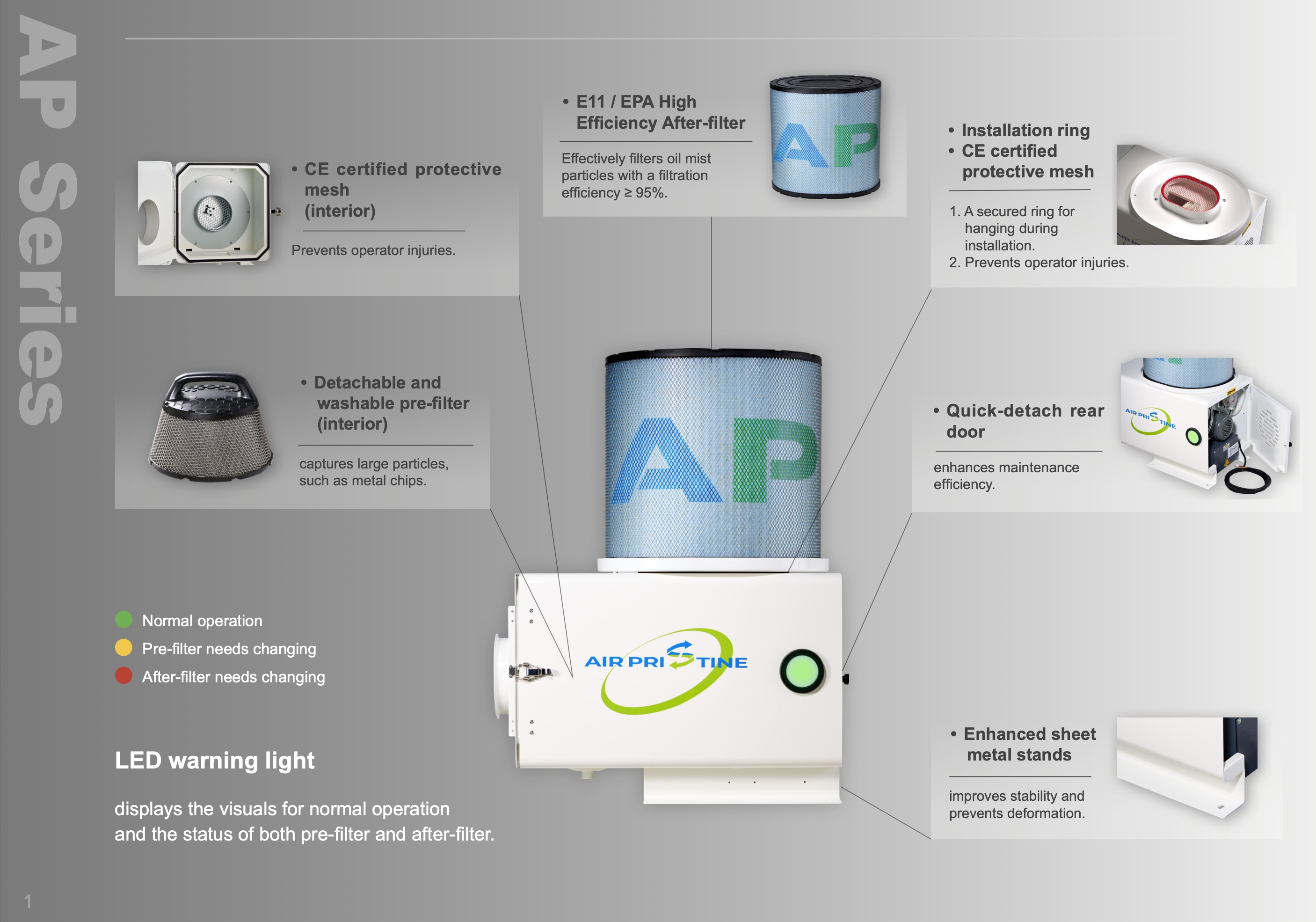

The AP Series oil mist collectors utilize a patented design specifically designed for industrial processing environments. They effectively filter the oil mist generated by cutting fluids during the cutting process on machine tools, capturing even the finest suspended particles, maintaining fresh air and ensuring workplace safety. The series includes four models, AP-10 to AP-40, with varying air volume configurations to flexibly meet the needs of various machine tool sizes and processing requirements.Product Specifications
| Model | AP-40 | ||
|---|---|---|---|
| Power Supply (V) | AC 380V or AC 220V 50/60Hz | ||
| AC Motor Power Consumption (W) | 1150 | ||
| Airflow (m³/min) | 40/48.5 (50/60Hz) | ||
| Noise Level (dBA) | 71/75 (50/60Hz) | ||
| Filtration Efficiency | E11/ HEPA grade, filtration efficiency up to 99.95%. | ||
| Weight (kg) | 80 | ||
| Height (mm) | 1153 | ||
| Length (mm) | 792 | ||
| Width (mm) | 490 | ||
